Install VA - Hyper-V
Headline
This is the installation guide for creating your own Tranzman Virtual Appliance under Microsoft Hyper-V.
Step 1

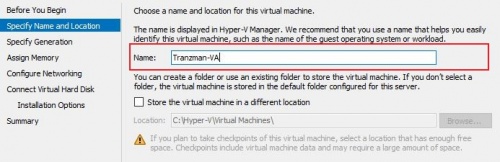

Launch Hyper-V manager and "Create a New Virtual Machine". Give the machine a unique name that will make it easy to identify, i.e. Tranzman - VA
Step 2

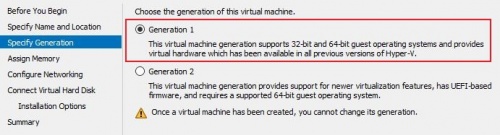

Select Generation 1 machine.
Step 3

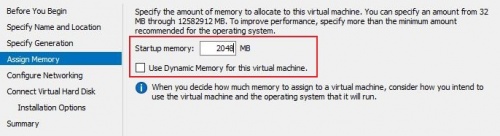

Select 2GB of RAM size. If you use Dynamic Memory, make sure that the Maximum RAM is set to this size.
Step 4
For the NIC settings, select an External Virtual Switch.
Step 5

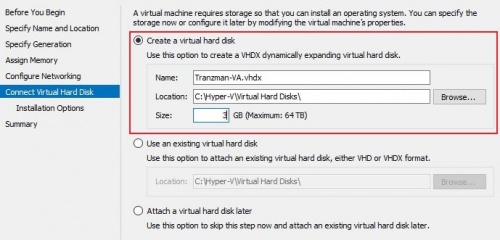

Assign two virtual hard disks as specified below.
- 1 x 3GB HDD for OS Installation
- 1 x 20GB HDD for Data
You will need to edit the machine later to add the second 20GB Hard Drive.
Step 6
At this stage, point it to the correct ISO image, or leave it out to install the operating system at a later date.
Step 7
Press Finish at the end of the process to start the creation of the VA, and proceed to install the OS once the process completes.
