Recovery to Files
Headline
To set up the type of Migration or "Personality" switch over to the WebGUI of the Appliance
Step 1
Verify that the Dashboard should already have an Environment with name TZM-NAS-Connector. The Dashboard enables you to check and monitor the TZM Appliance resources, migration state , service status , progress and state of Environments.
Step 2
Click the + button and add the origin backup environment.Enter the IP and select the platform of the backup server and hit Committ button.
Step 3

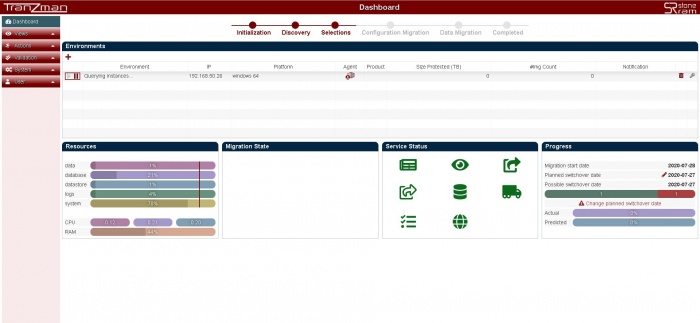

The Dashboard should now give you an environment with name as Querying instances... and IP address of your backup environment.

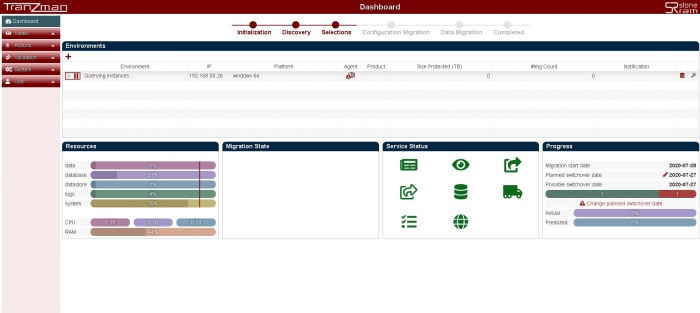

Under the Agent Column hit the
button , this should download you a Agent package (.bin file if Origin is *nix or .exe file if Origin is Windows).
Step 4
Copy the file over to the backup server and install it.Make sure you either run the setup as administrator/root or as a user used to configure backup services. Follow the instructions on the screen during install.
 |

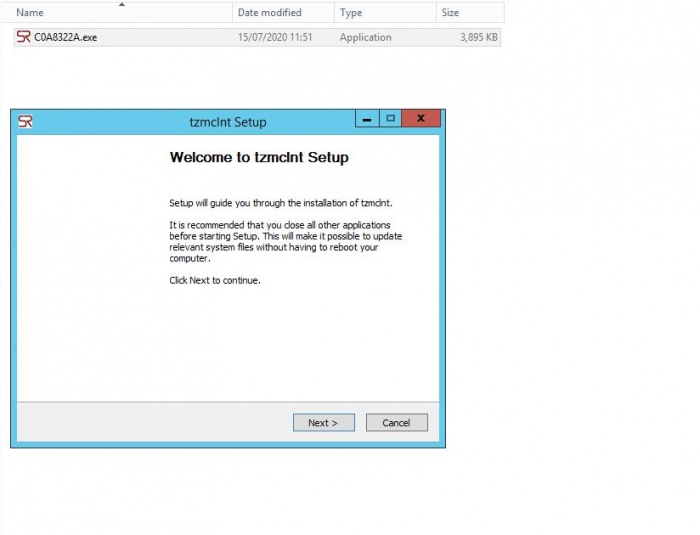

Install of Agent on a Windows Server |
|
Install of Agent on a Linux Server |
|
[root@NBUNewMaster tmp]# chmod 755 ./C0A80591.bin [root@NBUNewMaster tmp]# ls -ltr ./C0A80591.bin -rwxr-xr-x. 1 root root 14102251 Aug 6 15:08 ./C0A80591.bin [root@NBUNewMaster tmp]# [root@NBUNewMaster tmp]# [root@NBUNewMaster tmp]# ./C0A80591.bin Running Tranzman Agent Installer Enter install path location [/opt/SRL]: Installing to /opt/SRL Looking for existing Tranzman Agent Installation in /opt/SRL Installing Tranzman Agent Starting Tranzman Agent [root@NBUNewMaster tmp]# |
Step 5

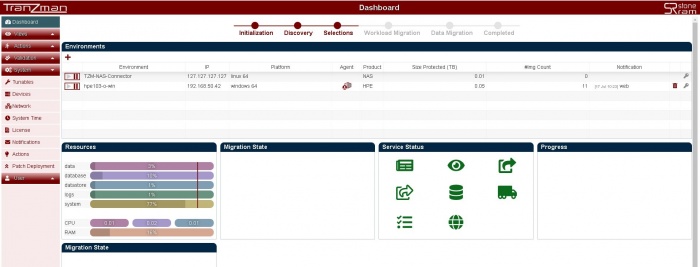

Upon successfull installation of the Agent on the backup server all the columns for the newly added environment should be populated like e.g. As shown in the below picture.
Note:- Repeat the above steps for all the environments to be added.
