Revision as of 12:36, 9 August 2023
By default, Tranzman appliance tries to use the DHCP configuration to configure Network. However, the above can be modified and cutom configured to static configuration using Network configuration page.

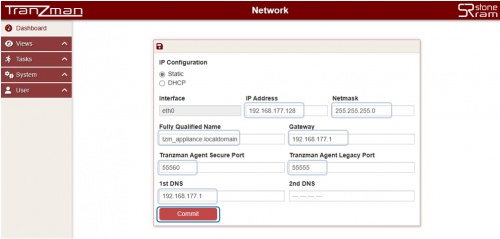

Select Static radio button for static Network configuration. In the above case, IP Address,Netmask,Fully Qualified Name,Gateway,Tranzman Agent Secure Port,Tranzman Agent Legacy Port,1st DNS,2nd DNS can be configured to custom values.

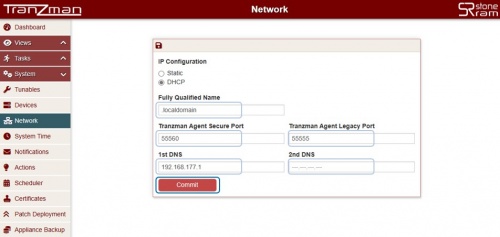

In case of DHCP, Fully Qualified Name,Tranzman Agent Secure Port,Tranzman Agent Legacy Port,1st DNS,2nd DNS can be configured as highlighted below.
Click on Commit to update the configuration.
The Commit on successful configuration will redirect to the System Time page for Appliance Date/Time Configuration.
 | It is not recommended to modify the Tranzman Agent Ports without StoneRam assistance. |
|
|
